EE-Series (EE55,EE42,EE30,EE28,EE25,EE20,EE19,EE16,EE13,EE10)

Features

Inductor with Single winding as per user design

Transformer with multiple windings and mutiple wires as per user design

Multiple section chokes are also available

Primary inductance standard +/-10%, also available +/-5% on request

Available in vertical/horizontal types

Leakage inductance below 3% of primary inductance

Dielectric strength Primary to Secondary as below:
  *EE10 to EE13 0.5KV
  *EE16 to EE19 1KV
  *EE 20 to EE25 1.5KV

Extended dielectric strength( eg 3KV/3.5KV/4.5KV) with reinforced insulation availbale on request

Applications

Transformer for SMPS power supply

Transformer for LED drivers

Chokes for EMI applications

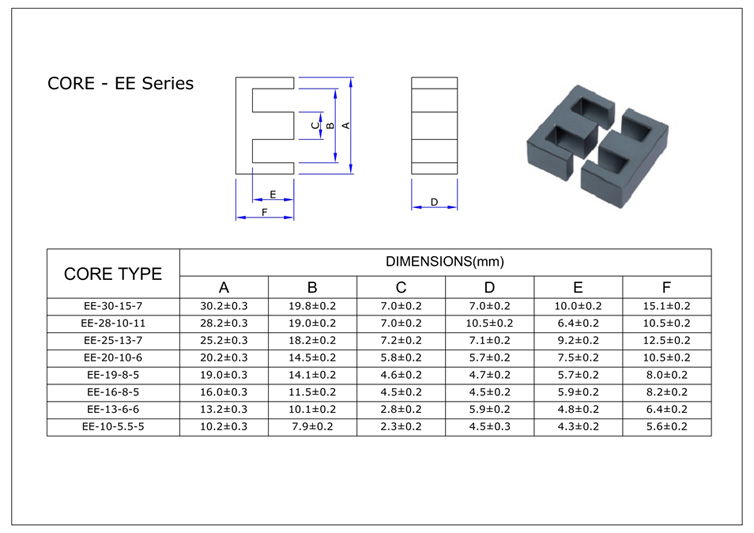

Core Drawings

Bobbin Drawings

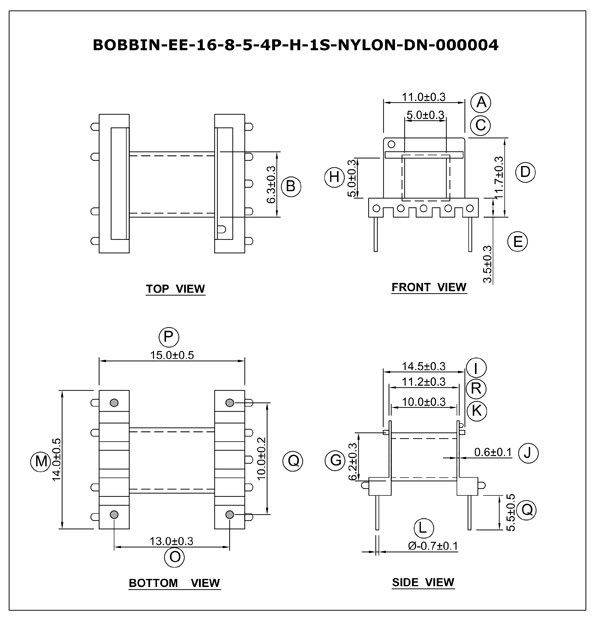

BOBBIN-EE 20-10-6-WH-H-8P-2S-NYLON-DN-000062

BOBBIN-EE 25-9-6-H-4P-2S-NYLON-DN-000063

BOBBIN-EE-10.5-8P-V-1S-PHENOLIC-DN-000044

BOBBIN-EE-13-6-6-10P-V-1S-NYLON-DN-000030

BOBBIN-EE-13-6-6-10P-V-1S-PHENOLIC-ROHS-DN-000049

BOBBIN-EE-16-6-5-10P(4+2)-V-NYLON-DN-000058

BOBBIN-EE-16-08-05-V-1S-4P-CU-NYLON66-GF-30-DN-000057

BOBBIN-EE-16-8-5-2P-V-1S-NYLON-GF 30%-DN-000003

BOBBIN-EE-16-8-5-4P-H-1S-NYLON-DN-000004

BOBBIN-EE-16-8-5-4P-H-1S-NYLON-DN-000005

BOBBIN-EE-16-8-5-4P-H-2S-NYLON-DN-000026

BOBBIN-EE-16-8-5-4P-H-2S-NYLON-DN-000028

BOBBIN-EE-16-8-5-8P(4+2)-H-NYLON-DN-000060

BOBBIN-EE-16-8-5-8P-H-1S-NYLON-DN-000029

BOBBIN-EE-16-8-5-8P-H-1S-PHENOLIC-DN-000051

BOBBIN-EE-16-8-5-10P-H-1S- NYLON-Without Stands Offs-DN-000034

BOBBIN-EE-16-8-5-10P-H-1S-PHENOLIC-DN-000033

BOBBIN-EE-16-8-5-10P-V-1S-NYLON-DN-000010

BOBBIN-EE-16-8-5-10P-V-1S-PHENOLIC-DN-000036

BOBBIN-EE-16-8-5-10P-V-PHENOLIC-DN-000065

BOBBIN-EE-16-8-5-H-7P(5+2)-1S-NYLON-DN-000064

BOBBIN-EE-19-8-5-2P-H-1S-NYLON-DN-000001

BOBBIN-EE-19-8-5-3P-V-1S-NYLON66-GF30%-DN-000056

BOBBIN-EE-19-8-5-4P-H-1S-NYLON-DN-000017

BOBBIN-EE-20-10-6-2P-H-1S-NYLON-Round Stand Offs-DN-000023

BOBBIN-EE-20-10-6-4P-H-1S-NYLON-Without Stand Offs-DN-000002

BOBBIN-EE-20-10-6-8P-H-1S-NYLON-WHITE-With Stand Offs-DN-000009

BOBBIN-EE-20-10-6-10P-(5+2)-H-NYLON-DN-000061

BOBBIN-EE-20-10-6-10P(5+2)-V-NYLON-DN-000059

BOBBIN-EE-20-10-6-10P-H-1S-NYLON-Stand Offs-DN-000008

BOBBIN-EE-20-10-6-10P-H-1S-NYLON-Stand Offs-DN-000022

BOBBIN-EE-20-10-6-10P-H-1S-PHENOLIC-DN-000035

BOBBIN-EE-20-10-6-10P-V-1S-NYLON-DN-000021

BOBBIN-EE-20-10-6-10P-V-1S-PHENOLIC-FR-ROHS-DN-000055

BOBBIN-EE-25-13-7-4P-H-NYLON-DN-000039

BOBBIN-EE-25-13-7-5+5P-V-1S-NYLON-DN-000014

BOBBIN-EE-25-13-7-8P-H-1S-NYLON-WHITE-DN-000037

BOBBIN-EE-25-13-7-8P-V-1S-NYLON-DN-000013

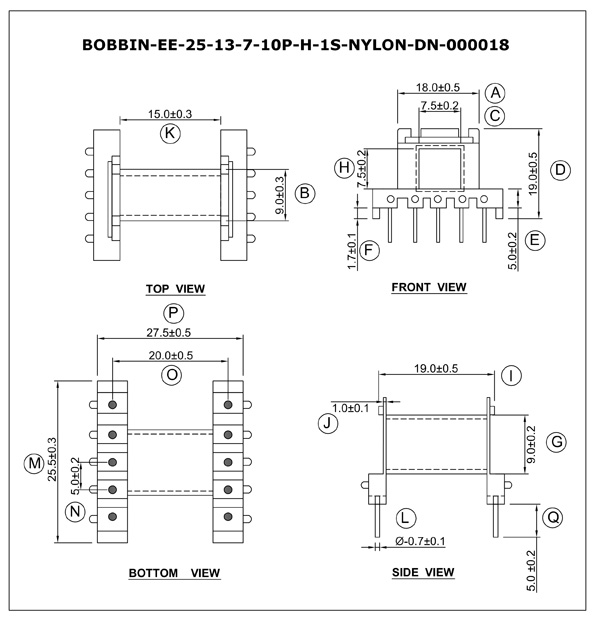

BOBBIN-EE-25-13-7-10P-H-1S-NYLON-DN-000018

BOBBIN-EE-25-13-7-10P-H-1S-NYLON-DN-000038

BOBBIN-EE-25-13-11-10P-H-1S-NYLON-DN-000052

BOBBIN-EE-28-10-11-10P-V-1S-PHENOLIC-DN-000040

BOBBIN-EE-30-15-7-10P-H-1S-NYLON-DN-000043
