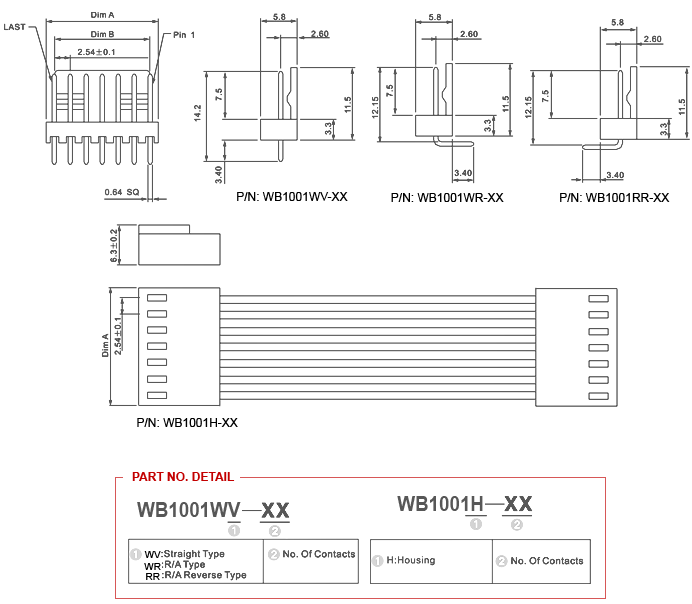

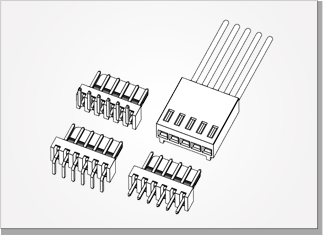

Wire to Wire Wire to Wire   Pitch: 2.5mm Pitch: 3.0mm Pitch: 3.0mm Pitch: 4.2mm Pitch: 5.7mm Pitch: 5.8mm Pitch: 6.2mm Pitch: 6.7mm Wire to Board Wire to Board   Pitch: 2.0mm Pitch: 2.0mm Pitch: 2.5mm Pitch: 2.5mm Pitch: 2.5mm Pitch: 2.54mm Pitch: 2.54mm Pitch: 2.54mm Pitch: 3.96mm Pitch: 3.96mm Pitch: 3.96mm Pitch: 5.08mm Pitch: 5.08mm Pitch: 5.08mm Pitch: 7.5mm – 5.0mm Pitch: 10mm – 8mm Board In Board In Pitch: 2.5mm Pitch: 3.96mm D-SUB D-SUB D-SUB Solder Type Battery Cables Battery Cables   Snap Terminal Fork Terminal Ring Terminal Tubular Terminal   Home » Products » Wire to Boards » Pitch 2.54 mm Pitch: 2.54 mm Specifications Pitch: 2.54 mm No. of Poles: 2 - 20 Pin Current rating: 3.0A AC/ DC Voltage rating: 250V AC/ DC Contact resistance: 20m ohm.max Insulation resistance: 1000M ohm.Min Withstanding voltage: 1000V AC for one minute Operating temperature range: - 25°C to + 105°C Material and Finish Insulator: High Temp.Plastic (UL94V-0) Contact: Copper Alloy Plating: Tin Plated
