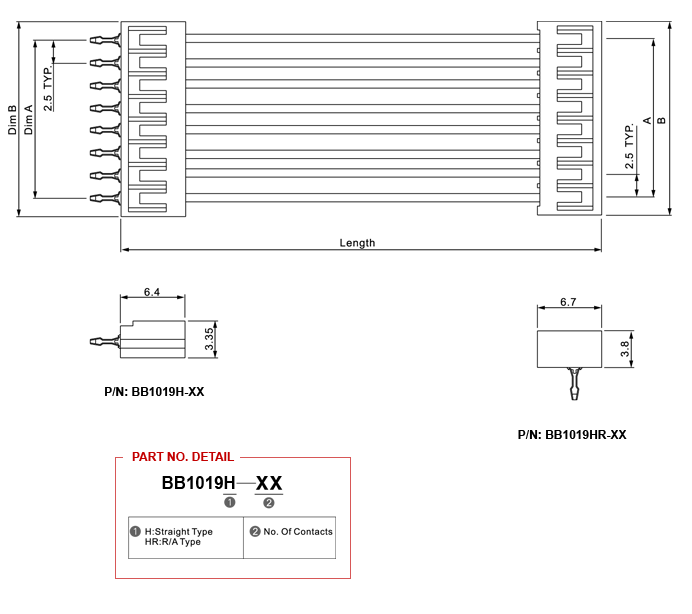

Pitch: 2.5mm

No. of Poles: 2 – 16 Pin

Current rating: 3.0A AC/DC

Voltage rating: 250 V AC/DC

Contact resistance: 20m ohm.max

Insulation resistance: 1000M ohm.Min

Withstanding voltage: 1000V AC for one minute

Operating temperature range: - 40°C to + 105°C
