Home » Products » Wire to Boards » Pitch 2.5 mm

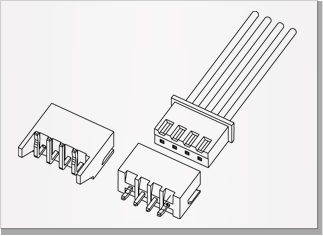

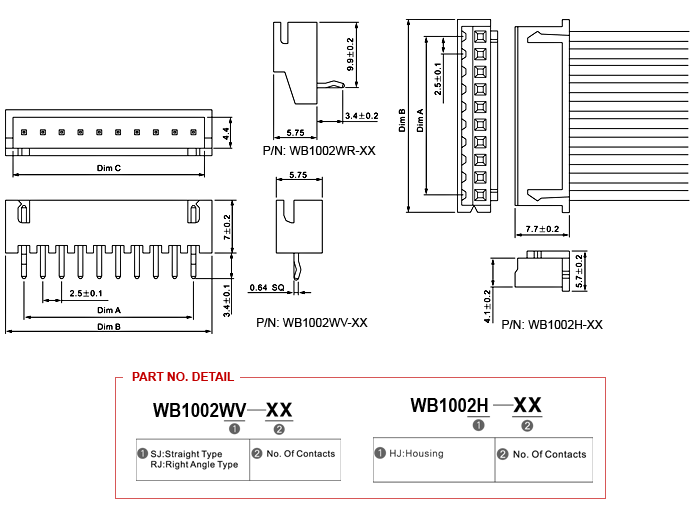

Pitch: 2.5 mm

Pitch: 2.5mm

No. of Poles: 2 – 20 Pin

Current rating: 3.0A AC/DC

Voltage rating: 250 V AC/DC

Contact resistance: 20m ohm.max

Insulation resistance: 1000M ohm.Min

Withstanding voltage: 1000V AC for one minute

Operating temperature range: - 40°C to + 85°C



Insulator: High Temp.Plastic (UL94V-0)

Contact: Copper Alloy

Plating: Tin Plated
