Home » Products » Wire to Wire » Pitch 5.8mm

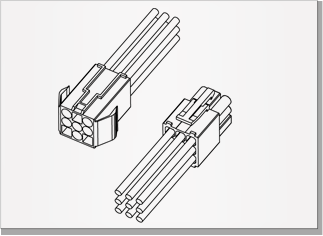

Pitch: 5.8mm

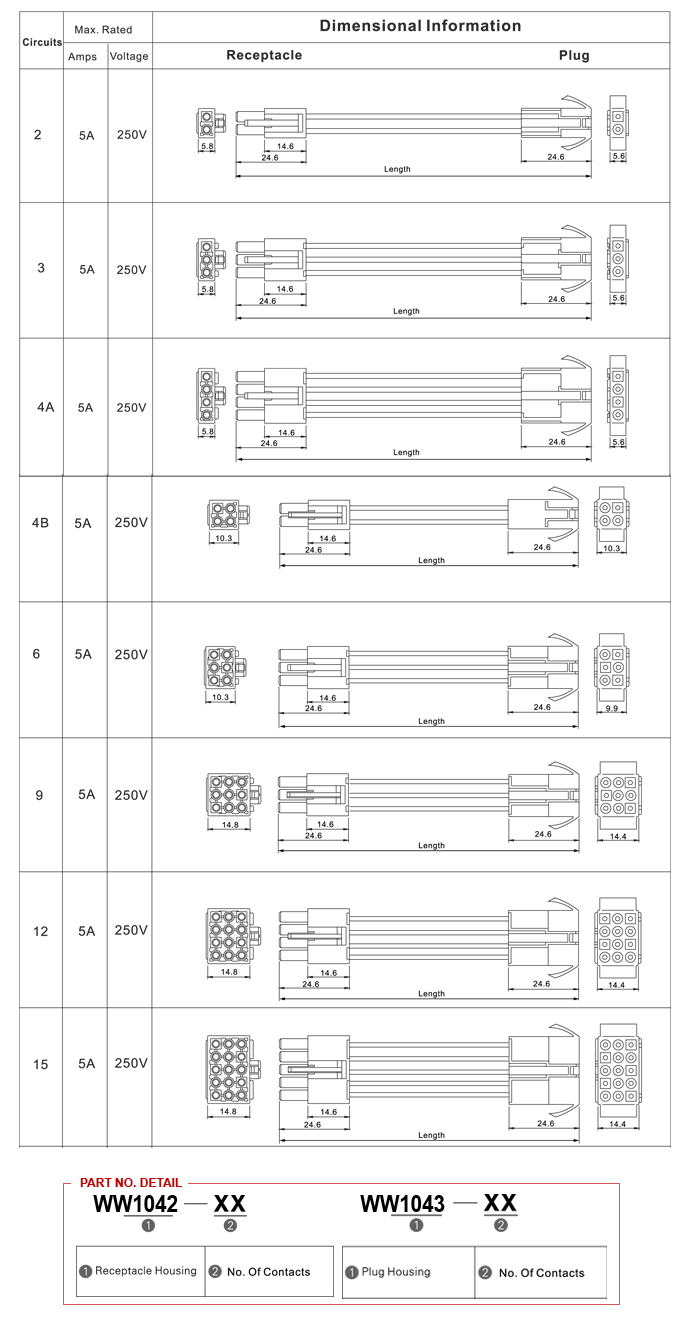

No. of Poles: 1, 2, 3, 4, 6, 9, 12, 15

Current rating: 5.0A AC/DC

Voltage rating: 250 V AC/DC

Contact resistance: 20m ohm.max

Insulation resistance: 1000M ohm.Min

Withstanding voltage: 1500V AC for one minute

Operating temperature range: - 25°C to + 125°C

Application wire: AWG #26 to # 18



Insulator: High Temp.Plastic (UL94V-2)

Contact: Copper Alloy

Plating: Tin Plated
